Effect of directly acting anti-viral agents on immunological imprints in chronic HCV-4a patients: interleukin-10 and vascular endothelial growth factor genes expression level

Abstract

Background

Hepatitis C virus infection is a global health challenge with Egypt being one of the highly affected countries. IL-10 has been suggested as a suitable marker to assess necroinflammation and to monitor the progression of liver damage. Vascular endothelial growth factor (VEGF) is a potent angiogenic factor playing a central role in many physiological as well as pathological processes. Several factors can be predictive of the response to treatment and achievement of SVR; some of which are host-related, and others are virus-related. The gene expression of IL-10 and VEGF have multiple effects for treatment response. The aim of the present work was to study the effect of treatment with directly acting agents (DAA) on the expression of VEGF and IL-10 genes in chronic hepatitis C virus-infected Egyptian genotype-4a patients. Twenty-five HCV subjects where evaluated for IL-10 and VEGF gene expression before and after treatment with DAA.

Results

IL-10 expression was downregulated in 92% of the cases. VEGF expression was heterogeneous showing spreading of values along a wide range with 64% of the cases being downregulated.

Conclusion

DAAs do not completely reverse the immunological imprints established upon chronic HCV infection.

Background

Hepatitis C virus (HCV) infection is a global health challenge with Egypt being one of the highly affected countries [1]. HCV genome exhibits significant genetic variability which leads to its classification into 7 major genotypes and up to 67 different subtypes. This genetic variability affects the response to treatment and the virus capability to escape the immune surveillance [2]. Genotype 4 is the most common genotype in Egypt [3].

In 2018, a meta-analysis for HCV viremic rate among the Egyptian population indicated that HCV prevalence was estimated by 11.9% among the general population; 67% of them are chronically infected and are in need for treatment [4].

Both innate and adaptive immune responses are essential for viral clearance. The innate response is the first line of defense during infection [5]. Cytokines play an important role in viral clearance, inflammation, regeneration, and fibrosis. Interleukin 10 (IL-10) and vascular endothelial growth factor (VEGF) are key players in the immune response against HCV infection. Both are seen elevated in patients with HCV, cirrhosis, and HCC and their levels are associated with disease progression and prognosis [6]. IL-10 can also be used as a marker to assess necroinflammation and to monitor the progression of liver damage [7]. High levels of IL-10 are associated with Th-2-like response which leads to viral persistence and chronicity. Moreover, IL-10 inhibits Th-1-like response that is responsible for viral clearance after acute infection [8].

The adaptive immune response through CD4+T cells has a central role in induction of anti-viral immune response against viral infection which can be subdivided according to two predominant profiles referred to as T helper 1 (Th1)-like and T helper 2 (Th2)-like responses. Th1-like responses include the secretion of IL-2, TNF-α, and IFN-γ which are required for generation of cytotoxic T lymphocytes and activation of natural killer (NK) cells, while Th2-like responses produce IL-4 and IL-10, which inhibit development of the Th1 response [9]. In early HCV infection, those who clear the infection have significant Th1 responses with high IFN- γ and IL-2, while those who progress to chronicity have a significantly high magnitude of IL-10 and significantly higher ratio of IL-10 to IFN-γ production early in infection and along the course of the disease [10].

VEGF is a potent angiogenic factor playing a central role in many physiological as well as pathological processes. VEGFs exert their effects by activation of different signaling pathways stimulating endothelial cell proliferation and migration and increasing the vascular permeability [11, 12]. It is a powerful mitogen for microvascular and macrovascular endothelial cells. VEGF reduces hepatocellular tight junction (TJ) integrity and hepatocellular polarity through a VEGFR-2 dependent pathway [13]. The increased hepatic angiogenesis in chronic HCV could provide the molecular basis for liver carcinogenesis and contribute to the increased risk of HCC in patients with cirrhosis on top of HCV [14].

“The goal of treatment of HCV-infected persons is to reduce mortality and liver-related health adverse consequences, including end-stage liver disease and hepatocellular carcinoma, by the achievement of virologic cure as evidenced by a sustained virologic response.” as recommended by the EASL-IDSA. The introduction of the directly acting anti-viral agents (DAAs) in the treatment of chronic HCV infections has led to dramatic improvement in outcome of HCV-infected patients [15].

The present work aimed to study the effect of treatment with directly acting agents (DAA) on the expression of VEGF and interleukin-10 genes in chronic HCV-infected patients in Alexandria, Egypt.

Methods

After the approval of the Ethical Committee of the Medical Research Institute, 25 chronic HCV genotype-4-infected patients were selected from the Department of Experimental and Clinical Internal Medicine, Medical Research Institute, Alexandria University. An informed consent was taken from each patient. The 25 HCV-positive patients were assessed before and after the end of DAA treatment. Exclusion criteria included co-infection with HBV infection, co-morbidities with renal or cardiac diseases, having any malignancies, and any immunological disorders.

The 25 HCV-positive patients were diagnosed by positive anti-HCV test result and confirmed by measuring the viral load by real-time polymerase chain reaction (PCR). The patients received sofosbuvir/ledipasvir once daily for 12 weeks. Virological response was assessed at the end of treatment. In this prospective study, the following was performed for all patients:

Complete physical examination

Abdominal examination for signs of hepatic failure as ascites. Abdominal ultrasound to confirm the presence or absence of cirrhosis and any liver mass if present and Child-Pugh classification [16].

Blood sampling

Sampling was performed at baseline and at the end of treatment. Ten milliliters of venous blood was withdrawn from each patient and divided into different vacutainers for molecular studies, coagulation studies, and complete blood count. Sera was separated for the determination of the concentrations of serum levels of albumin [17], total and direct bilirubin [18], and serum activities of the enzymes alanine and aspartate aminotransferases using fully automated chemistry analyzer Beckman AU400 [19, 20]. Also, plasma prothrombin activity (PT) was done [21].

Determination of HCV viral load

Viral RNA was extracted from patients’ sera using QIAamp viral RNA mini spin Kit (Qiagen®) according to manufacturer’s instructions. The extracted viral RNA was used as a template for HCV viral load determination before initiation of treatment and 12 weeks after treatment using Artus HCV QS-RGQ-PCR Kit (Qiagen®) and real-time PCR machine MX3000 TM (Stratagene) according to manufacturer’s instructions [22].

Determination of HCV genotype

HCV genotype via amplification, sequencing, and nucleotide blasting of NS5b domain. Briefly, cDNA strand was synthesized from HCV RNA using RevertAid First Strand cDNA Synthesis Kit (Thermo Scientific) using random hexamer primers provided with the kit. NS5b domain was amplified using nested PCR primers JA 230 CTACCATCATGGCTAA(A/G)AA(C/T)GAGGT JA 233 ATGATGTTATGAGCTCCA(A/G)GTC(A/G)TA JA 231 TATGA(C/T)ACCCGCTG(C/T)TTTGAC 50 JA 232 CCTGGTCATAGCCTCCGTGAA. The PCR reaction was performed in 25 μl final reaction containing 2× DreamTaq green PCR master mix (Thermo Scientific, USA) and 5 μM of each primer and 1 μl of cDNA or first amplification. The thermal cycling consisted of 35 cycles of denaturation at 95 °C for 30 s, annealing at 50 °C for 30 s and extension at 72 °C for 30 s, and preceded by 1 cycle of initial denaturation at 95 °C for 5 min and followed by 1 cycle of final extension at 72 °C for 5 min. The same reaction was used for the second amplification (nested) in 50 μL final reaction volume containing 1 μL of the first amplification product as a template. The purified NS5b PCR products were sequenced using the BigDye Terminator V 3.1 Cycle Sequencing Kit (Applied Biosystems) on the automated sequencer ABI prism 310 genetic analyzers (Applied Biosystems). For determination of HCV genotypes and subtypes, NS5b sequencing results were analyzed using a HCV BLAST free online tool from HCV sequence database (https://hcv.lanl.gov/content/sequence/BASIC_BLAST/basic_blast.html).

IL-10 and VEGF relative gene expression:

Peripheral blood mononuclear cells (PBMC) were isolated from anticoagulated blood by Ficoll-Paque™ method then total RNA was purified from mononuclear cells using Qiagen RNeasy Mini Kit Spin Technology according to manufacturer’s instructions. The concentration of RNA was determined using Nano Drop Thermo Spectrophotometry (Thermo Scientific) by measuring the absorbance at 260 nm A260. The purity of RNA was assessed using ratio A260/A280 ratio. Ratio between 1.7 and 1.9 was considered acceptable. Reverse transcription of 1 ug of RNA and effective genomic DNA elimination was performed by the Quantitect Reverse Transcription kit according to manufacturer’s instructions then quantification of IL-10, VEGF, and GAPDH genes was performed using SBR-green real-time PCR. QuantiTect Primer Assays (Qiagen®) was used for accurate real-time quantification of target RNA. The reaction was performed in 20 μl final volume containing 10 μl Quantitect sybr green PCR Master Mix, 2 μl Quantitect primer assay, and 2.5 μl template cDNA on real-time PCR machine MX3000 TM (Stratagene). The reaction took place under the following thermal profile: initial incubation at 50 °C for 15 min to activate the DNA polymerase. This was followed by 45 cycles of 3 PCR-step amplification, denaturation at 94 °C for 15 s, followed by annealing at 57 °C for IL-10 and 60 °C for VEGF for 30 s, and followed by extension at 72 °C for 30 s, with real-time fluorescence detection.

Calculation of relative gene expression

Relative expression of target genes (IL-10, VEGF) was calculated using the comparative CT method (2−ΔΔCT method) [23]. CT values of the target genes were normalized against the CT value of housekeeping gene (GAPDH). The fold changes after treatment was compared to the control group (before treatment) which was set to 1 [24].

Calculation of platelet ratio index (APRI) and fibrosis- (FIB-) 4 scores

Platelet ratio index (APRI) and fibrosis- (FIB-) 4 indexes were calculated using simple mathematical formulas as follows [25]:

$$ \mathrm{APRI}:\left(\mathrm{AST}\ \left[\mathrm{level}\right]/\mathrm{AST}\left[\mathrm{upper}\ \mathrm{limit}\ \mathrm{of}\ \mathrm{normal}\right]/\mathrm{platelet}\ \mathrm{count}\ \left[109/\mathrm{L}\right]\right)\times 100 $$

For APRI, cut-off value of < 0.5 rules out fibrosis while ≥ 1 was assigned for marked fibrosis and ≥2 for cirrhosis.

$$ \mathrm{FIB}-4:\mathrm{age}\ \left[\mathrm{years}\right]\times \left(\mathrm{AST}\ \left[\mathrm{U}/\mathrm{L}\right]\ \mathrm{platelets}\times 109/\mathrm{L}\right]\times \mathrm{ALT}1/2\ \left[\mathrm{U}/\mathrm{L}\right]\Big). $$

For FIB-4, a cut-off value of < 1.45 rules out advanced fibrosis while ≥ 3.25 was assigned for marked fibrosis.

Statistical analysis

Data were fed to the computer and analyzed using IBM SPSS software package version 20.0. (Armonk, NY: IBM Corp.). Qualitative data were described using number and percent. The Kolmogorov-Smirnov test was used to verify the normality of distribution. Quantitative data were described using range (minimum and maximum), mean, standard deviation, and median. Significance of the obtained results was judged at the 5% level. The Student t test was used for normally distributed quantitative variables to compare between two studied groups while Mann-Whitney test was used for abnormally distributed quantitative variables. Correlations between quantitative continuous variables parameters were evaluated by linear regression with analysis of Pearson’s coefficients.

Results

A total of 25 HCV genotype-4-infected patients were enrolled in the present study; all of which (100%) were treatment-naïve cases. Females represented 52% (13/25) while males were 48% (12/25) and their ages ranged from 17 to 65 years.

There is a statistically significant difference between the ALT and AST activity as well as prothrombin activity (INR) before and after treatment in the studied cases (p = 0.0003, p = 0.0001, p = 0.022, respectively). There is no correlation between the viral load and ALT and AST activity, albumin, bilirubin level (total and direct), or the studied hematological parameters before treatment (Table 1).

Table 1 Hematological, chemical profile, and viral load of HCV patients before and after DAA treatment

Child-Pugh score, APRI, and FIB-4 were calculated for all cases enrolled in the present study before treatment to estimate the severity of liver injury and the majority of the patients were categorized as Child-Pugh class (A) 88% (22/25), while class (B) were 12% (3/25), and none were classified as class (C). Additionally, APRI and FIB-4 were calculated for all cases in the present study as a non-invasive marker for assessment of hepatic fibrosis or cirrhosis before and after treatment. Before treatment, APRI ranged from 0.108 to 2.43 with a mean of 0.87 while FIB-4 ranged from 0.27 to 6.49 with a mean of 2.20. After treatment, APRI ranged from 0.214to 0.987 with a mean of 0.44 while FIB-4 ranged from 0.27 to 4.88 with a mean of 1.60. The difference between the APRI and FIB-4 scores before and after treatment was found statistically significant (p = 0.002, p = 0.048 for APRI and FIB-4, respectively).

The majority of HCV patients (80%) had a viral load ranging between > 105–< 107 IU/ml. The remaining 20% had a viral load < 105. NS5b region was successfully amplified and sequenced in all 25 patients included in this study. The 25 HCV patients involved in this study were genotyped as HCV genotype 4a.

As regards the relative expression of IL-10 (Fig. 1), 92% (23/25) of the cases showed downregulated expression and only 2 (8%) showed upregulated expression. As for the relative expression of VEGF (Figure 2), 64% (16/25) of the cases showed downregulated expression while 36% (9/25) of the cases showed upregulated expression (Table 2).

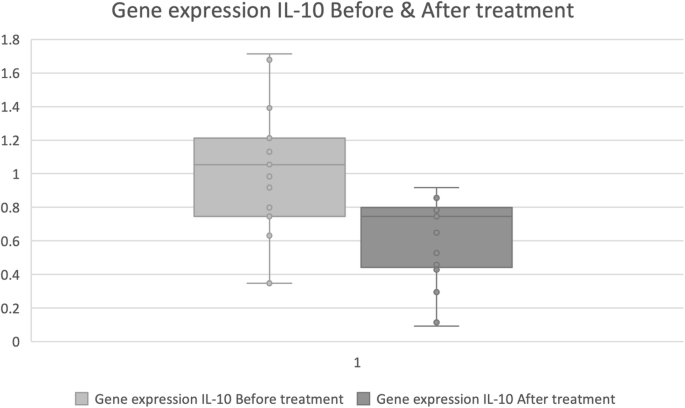

Fig. 1
figure 1

Box plot showing the expression of IL-10 in HCV patients before and after DAA treatment

Fig. 2
figure 2

Box plot showing the expression of VEGF in HCV patients before and after DAA treatment

Table 2 IL-10 and VEGF gene expression among HCV-infected patients

Correlation between IL-10 expression and the liver functions, hematological parameters, viral load, and calculated fibrosis scores before treatment shows a strong positive correlation with the viral load (r = 0.721, p = 0.0001) while other parameters show no correlation, while correlation between VEGF expression and liver functions, hematological parameters, viral load, and calculated fibrosis scores before treatment shows a positive correlation with AST activity (r = 0.573, p = 0.003) as well as with the viral load (r = 0.488, p = 0.013) while other parameters show no correlation (Table 3).

Table 3 Correlation between IL-10 and VEGF gene expression with other studied variables before and after DAA treatment

Correlation between IL-10 and VEGF expression and the liver functions (AST, ALT, bilirubin total and direct, albumin), hematological parameters (platelet count, INR), viral load, and calculated fibrosis scores (APRI and FIB-4) after treatment shows no correlation with any of the mentioned parameters.

Discussion

The use of DAAs for the treatment of viral hepatitis has led to dramatic improvement in outcome of HCV-infected patients. They target 3 main parts of viral particle NS3/4A protease, NS5A, and NS5B RNA-dependent polymerase [26].

In the current study, all HCV patients received sofosbuvir-based regimen for 12 weeks. The results showed that 100% of the cases (25/25) achieved SVR by the end of the treatment course confirmed by an undetectable PCR viral load. This is consistent with other studies that reported high SVR on sofosbuvir-based regimen. El Raziky et al. [27] had presented his results from a phase II open-label study (OSIRIS) conducted in Egypt on 63 patients with/without cirrhosis and has reported 100% SVR-12 for both groups. Similar results were reported by Lawitz et al. (2015) [28], Feld et al. [29], and Gayam et al. (2018) [30].

Although HCV RNA monitoring during HCV treatment has been a standard practice, aminotransferases (ALT and AST) monitoring is also important to assess improvement of liver injury, drug side effects or interactions, and treatment response. Typically, SVR is accompanied by normalization of ALT, AST which reflects a positive response to therapy and subsequent reduction in risk for progressive cirrhosis and HCC [31]. In the present study, cases showed normalization of the mean of liver enzymes after treatment. There is a statistically significant difference between the ALT and AST activity before and after treatment. In agreement with these results, Huynh T et al. (2018) [32] assessed the dynamic patterns of both ALT and AST during and after DAA treatment for HCV infection and the study provided evidence that normalization of both ALT and AST is well associated with sustained HCV clearance and could be a potential biochemical marker to assess HCV treatment responses. In addition, some authors [31, 33] concluded that AST and ALT may serve as a more economical predictive factor for viral clearance for SVR.

Chronic HCV-infected patients are at high risk for development of advanced fibrosis as part of the natural course of the disease, 20% of patients will progress to advanced liver disease with cirrhosis or HCC [34]. In the present study, 12% of the cases were categorized by Child-Pugh score as class B while 88% were classified as class A. Before treatment, APRI index had a mean of 0.87 while the FIB-4 had a mean of 2.2. After treatment, APRI index showed a mean of 0.44 while the FIB-4 showed a mean of 1.6. The difference between the APRI score and FIB-4 index before and after treatment was statistically significant.

Bachofner et al. (2017) [35] measured the transient elastography (TE) and calculated the FIB-4 and APRI scores for 549 HCV patients who received a DAA-based treatment and reported that the cases recorded an improvement in liver stiffness recorded by TE and regression of validated fibrosis scores of the FIB-4 and APRI in concordance with the HCV eradication by DAAs. Additionally, Hengst et al. [36] reported a rapid decline in APRI and FIB-4 scores after treatment coinciding with HCV clearance. Although this study results are in concordance with the previous reported studies but these results raise a question of whether this improvement in liver status reflects a true regression of fibrosis or merely resolution of chronic liver inflammation as the course of improvement is too short for such significant remodeling in liver tissue and such improvement requires long-term follow-up to confirm it.

Several studies addressed the effect of DAAs on the host immune response indicating the reconstitution of innate immunity and downregulation of interferon (IFN) cell signaling after DAA treatment suggesting that the rapid reduction in viremia induced by DAAs may attenuate inflammation with minimizing effects on hepatitis progression [37].

The aim of the present study was to investigate the effect of DAAs on VEGF and IL-10 expression coinciding with the viral clearance. The information on the expression of VEGF and IL-10 mRNA is still incomplete and it has not yet been determined in cases of HCV genotype-4 under DAAs treatment which makes the approach of this study a novel one since other studies used the protein serum level [38, 39].

In the present study, the gene expression of IL-10 in HCV genotype-4 patients before and by the end of treatment with DAAs drugs was measured. IL-10 expression was downregulated in 92% (23/25) of the cases, while 8% (2/25) of the cases were upregulated with a range from 0.093 to 7.345. Despite of the apparent differences in expression levels within the studied group, the majority of the cases showed IL-10 down expression after DAA treatment coinciding with the viral clearance which can be explained by improvement of the inflammatory process ongoing with the persistent HCV infection and normalization of the liver functions. As for 2 cases who showed upregulation of IL-10 expression, they had the highest viral load of all the studied cases which may explain the delay in normalization of the immune response due the possible larger burden of the high viral load on the immune system of these 2 cases.

In this study, the data was grouped according to viral and host factors that influence or reflect progression of the disease, i.e., HCV RNA load, ALT, AST, and the stage of fibrosis. Before treatment, IL-10 showed a positive correlation with the HCV viral load which coincides with the previously mentioned reports linking high HCV replication with upregulation of IL-10 explained by inhibition effector T cell responses.

Several studies investigated the hypothesis that DAAs may modify the inflammatory pattern along the course of treatment. Saraiva et al. (2018) [40]; studied the dynamics of 30 different circulating cytokines and growth factors in HCV patients before DAA therapy initiation and after the end of therapy. The study concluded that there was a decrease in IL-10 serum levels in association with viral clearance after DAA therapy suggesting that it could be explained by loss of the suppressive function of regulatory T cells (Treg) which secrets IL-10 and other anti-inflammatory cytokines. Also, Villani et al. [41]; confirmed that DAAs resulted in a very rapid decline in viremia and normalization of ALT in less than 4 weeks; together with remarkable decrease in serum IL-10 coinciding with the viral clearance indicating a systemic inflammatory pattern change occurring in chronic HCV patients with very long lasting inflammation. Moreover, Alhetheel et al. [42] reported that following successful treatment with DAAs, the IL-10 levels declined with a concomitant increase in the serum IL-12 levels.

On the other hand, Hengst et al. [36] study showed that treatment with DAAs showed a dramatic response in clearance of the viral load and normalization of ALT but the studied cytokines (including IL-10) showing a baseline increase in expression although had significantly decreased during and after therapy but they did not completely reach normal values suggesting that the inflammatory changes are not fully reversible upon viral clearance.

These conflicting results in literature could be attributed to the differences in the ability of each patient to trigger an efficient immune response against HCV infection. In addition, age, gender, viral load, and liver disease status are also considered interference factors in HCV infection pathogenesis and response of the immune system to treatment. Also, longer follow-up is required to answer the important question of whether the inflammatory parameters will further decline over time in successfully treated patients with HCV infection and whether long-term restoration of the interferon system is achieved after HCV clearance [43].

In the present study, the hypothesis that DAAs cause an increase in VEGF which may be a risk factor for HCC development was addressed. By evaluating the serum expression of VEGF before and after DAA treatment in our cohort of HCV genotype-4 patients, VEGF expression was heterogeneous showing spreading of values along a wide range showing 64% (16/25) of the cases being downregulated, while 36% (9/25) of the cases were upregulated. This heterogeneity can be explained by variability in the immune response among the studied patients; although all patients were chronically infected with HCV, but they differed in many ways as the duration of illness, clinical stage of the disease, host genetic, and immune background. Moreover, further follow-up for this group was performed clinically by doing ultrasound at least once after end of treatment and none showed any detectable masses through the period of follow-up (6 months). A positive correlation was found between VEGF expression and each of the viral load as well as AST activity.

Up to our knowledge, only a limited number of studies have been performed to investigate effect of DAAs on different cytokines and growth factors but none of these studies has evaluated the expression level in the setting of follow-up study along the course of DAA treatment as the present study. Different researchers investigated the assumption that treatment with DAA increases the risk for occurrence/recurrence of HCC.

Saraiva et al. in 2018 [40] investigated the circulating levels of inflammatory and profibrogenic cytokines (including VEGF) in 88 patients before and after the end of treatment with DAAs. Serum level of VEGF was increased in HCV-infected patients before treatment while there was a significant decrease after anti-viral therapy. The final conclusion of the study suggested that viral control induced by DAA therapy restores inflammatory mediators in association with improvement in liver function. Similarly, Hengst et al. [36] showed that the expression of VEGF was significantly higher in all patients before treatment which normalized by end of treatment.

On the other hand, Debes et al. [44] in 2018 evaluated serum levels of 52 immune mediators (including cytokines, growth factors, and apoptosis markers) before, during, and after DAA treatment. VEGF-A which showed significantly higher serum expression levels before DAA treatment in patients that later developed HCC. These results potentially suggest that immune modulation by DAA probably does not trigger HCC development but rather that the immune background could be already affected before DAA treatment and induced a carcinogenic or pre-carcinogenic activity. Kawaguchi et al. [45] in 2018 reported that VEGF was continuously rising and maintained a high level until 12 weeks after DAA treatment ended in patient that showed rapidly growing HCC after treatment. Villani et al. [41] measured the pattern of change in VEGF which showed a 4-fold increase at week 4 after start of DAA treatment and remained elevated up to the end of treatment. The study concluded that the increase of VEGF and change in the inflammatory pattern may alter the balance between inflammatory and anti-inflammatory processes and modify anti-tumor surveillance in the host.

The increased risk for HCC reported by the previous studies was explained by the fact that DAA-mediated clearance of HCV leads to loss of intrahepatic immune activation by IFN-α which activates immune cells as natural killer cells and macrophages that directly inhibits tumor cell proliferation. Consequently, loss of immune activation of these cells by IFN-α may allow tumor growth [46]. However, there are no robust preclinical studies to support this hypothesis. Additionally, even using the best imaging modality cannot exclude a small HCC mass before treatment with certainty [47].

A moderate positive correlation between IL-10 and VEGF genes was shown in the studied group which was statistically significant. IL-10 and VEGF have some similarities and overlap in various functions as the processes of inflammation and angiogenesis are intimately linked, inflammatory mediators have a significant effect on the process of angiogenesis, and the reverse is also true [48].

Conclusion

DAAs has shown excellent SVR in HCV genotype-4 patients reaching 100% in this study which is associated with improvement in the liver functions and fibrosis scores indicating an improvement in liver inflammation and progression of fibrosis. The relative expression of IL-10 has shown a strong positive correlation with the viral load and data from this study provide evidences that successful viral clearance induced by DAAs leads to the downregulation of IL-10 expression in the majority of cases that could be explained by a possible shift in the pretreatment Th2 dominant immune response to the Th1 response. Despite of the viral clearance, relative expression VEGF was heterogeneous although showed a positive correlation with IL-10 but the upregulation in its expression after treatment in a considerable fraction of patients in this study shows that DAAs do not completely reverse the immunological imprints established upon chronic HCV infection. Another investigation at the SVR or even later may be needed to determine sustained outcome of the DAA therapy on the immunological response of chronic HCV-infected patients.
