Recent advances in non-invasive diagnosis and medical management of non-alcoholic fatty liver disease in adult
Egyptian Liver Journal volume 10, Article number: 37 (2020)
Number of non-alcoholic fatty liver disease (NAFLD) cases is increasing over time due to alteration of food habit, increase incidence of metabolic syndrome, and lack of exercise. Liver biopsy is the test for diagnosis and staging of NAFLD, but nowadays several biochemical markers, scoring systems, and imaging studies are available to diagnose and stage NAFLD which is linked to end-stage liver disease, hepatocellular cancer, and elevated cardiovascular- and cancer-related morbidity and mortality. Therefore urgent diagnosis and management are required to avoid complications related to NAFLD. This review summarizes recent advances in diagnosis and medical management of non-alcoholic fatty liver disease.
Recently published studies from PubMed, Red Cross, Copernicus, and also various previous studies were reviewed. We have discussed various non-invasive methods for detection of non-alcoholic fatty liver disease, non-alcoholic steatohepatitis (NASH), and hepatic fibrosis. Non pharmacological therapies for NAFLD, indications, and approved medications for NAFLD and other commonly used non-approved medications have been discussed in this review article.
Multiple non-invasive tests are available for diagnosis of NAFLD, and its different stages however gold standard test is liver biopsy. NALFD without NASH and significant fibrosis is treated by lifestyle modifications which include moderate to vigorous exercise and diet modification. To improve hepatic steatosis, minimum of 3–5% of body weight loss is necessary, but > 7–10% weight reductions is required for histological improvement in NASH and fibrosis. Pharmacotherapy is indicated when patient is having NASH with significant fibrosis.
Incidence and prevalence of “Non-alcoholic fatty liver disease” (NAFLD) is increasing over time mainly due to bad food habit, weight gain, and sedentary lifestyle. NAFLD is the most common cause of abnormal liver function tests (LFTs) in the UK . In the USA, prevalence of NAFLD is in between 10 and 30%, which is similar to Asia and Europe [2, 3]. Singh et al. in 2004  showed that 24.5% of healthy attendants had evidence of fatty liver on abdominal ultrasound. NAFLD is commonly associated with one or more component of metabolic syndrome such as obesity, diabetes mellitus, and dyslipidemia and is defined as the presence of ≥ 5% hepatic steatosis in histological examination without evidence of hepatocellular injury such as hepatocyte ballooning . Around 20% of patients with NAFLD develop non-alcoholic steatohepatitis (NASH) which may progress to cirrhosis , however most common cause of death in NAFLD patients is cardiovascular disease, and NAFLD is the third most common cause of hepatocellular carcinoma . “Burned out” NAFLD can be a hidden cause of cryptogenic cirrhosis. So, early diagnosis, and treatment of NAFLD and underlying predisposing factors are important to avoid liver damage which may progress to liver failure.
Liver biopsy is the gold standard test for diagnosis, grading, and histological assessment of NAFLD, and a four-point histopathologic grading system is used to assess severity of steatosis that ranges from 0 to 3, depending on presence of the percentage of fat-containing hepatocytes (Table 1) . But the value of a liver biopsy for the diagnosis of NAFLD in routine clinical practice is controversial, especially in the presence of a generally good prognosis for most patients with NAFLD, the lack of an established form of effective therapy, and the risks and costs associated with the liver biopsy.
Before considering the diagnosis of NAFLD, alcoholic fatty liver has to be excluded. Significant alcohol intake is considered when alcohol consumption > 7 standard drinks/week (70 g ethanol) in women and > 14 (140 g ethanol) in men (according to Asia-Pacific Guidelines) or > 21 standard drink on average per week in men and > 14 standard drink per week in women (according to AASLD guidelines) or > 30 g/day in men and > 20 g/day in women (according to EASL guideline). One standard drink in Asia specific area and Europe is roughly 10 gms of pure alcohol, however in USA it is 14 gms of pure alcohol. Therefore, patient should not take significant alcohol before diagnosis of NAFLD.
Non-invasive tests for diagnosis of hepatic steatosis
Imagings for diagnosis of hepatic steatosis
Abdominal ultrasonography: Usually, “Hepatic steatosis” is diagnosed incidentally by abdominal ultrasonography (USG) which detect the increased echogenicity of the liver and divides fatty liver into three grades (Table 1) . To identify hepatic steatosis, USG has sensitivity from 60 to 94% and specificity from 84 to 95% , and sensitivity is more than 90% when liver biopsy shows > 20% steatosis  (Fig. 1). Hepatorenal index of 1.34 or higher has sensitivity of 92% and specificity of 85% for identifying steatosis > 5% . Another semi-quantitative score (ultrasonographic fatty liver indicator) which requires the presence of liver/kidney contrast (brighter liver than kidney) among other parameters can detect NAFLD when score ≥ 2 . USG has several advantages (non-invasive test, widely available, low cost, quick diagnosis) and disadvantages (degree of fibrosis cannot be detected, low sensitivity when steatosis is less than 20%, and limited use in obese individuals) for detection of fatty liver.
Controlled attenuation parameter: Transient elastography is an ultrasound-based study and also known as vibration-controlled transient elastography or Fibroscan which can measure controlled attenuation parameter (CAP). CAP which ranges from 100 to 400 decibels per meter (dB/m) can detect significant hepatic steatosis, but it is less accurate to distinguish between the different grades of hepatic steatosis . However other studies indicate that CAP score is well correlated with steatosis grades in real-world clinical practice [14,15,16]. The optimal cut-off values of CAP for estimation of hepatic steatosis grades such as S1, S2, and S3 are ≥ 263dB/m, ≥ 281dB/m and ≥ 283dB/m respectively . Another study also graded hepatic steatosis depending on CAP value into S1 ≥ 238 dB/m, S2 ≥ 260 dB/m, and S3 ≥ 293 dB/m . It does not predict liver-related events, non-hepatocellular carcinoma cancers, and cardiovascular events . CAP showed excellent diagnostic performance for differentiating presence and absence of hepatic steatosis by using a cutoff value of 241 dB/m in children with NAFLD but has limited value in evaluating grades of steatosis, especially in children with high BMI (> 30 kg/m2) . Before recommendation for hepatic steatosis measurement, CAP needs further validation.
Computed tomography (CT scan): Decreased attenuation of hepatic parenchyma compared to intrahepatic vessels, spleen, and kidney is detected in NAFLD by both contrast-enhanced and non-contrast CT scan. When hepatic density is higher than spleen, hepatic steatosis can be excluded. Hepatic steatosis can be detected in CT scan of the abdomen when spleen attenuation > liver attenuation or when liver attenuation value < 48 Hounsfield units (HU) . Moderate-to-severe hepatic steatosis can be identified with a specificity of 100% when liver attenuation value is < 40–42 HU and hepatic-spleenic attenuation ratio is < 0.8 . Qualitative evaluation of the liver on a portal venous phase contrast-enhanced CT is highly specific to detect hepatic steatosis, but sensitivity (around 60%) is low. CT scan has several limitations such as limited accuracy to detect mild degree hepatic steatosis, risk of radiation exposure, high cost, and availability. CT scan is commonly used to detect hepatic steatosis for living liver donor candidate . Dual energy CT (DECT) findings are strongly correlated with histopathologic findings in cases of steatosis and can allow rapid, accurate evaluations of hepatic steatosis.
Magnetic resonance imaging (MRI): MRI is considered as the most definitive imaging study for qualitative and quantitative assessment of hepatic steatosis. The sensitivity and specificity of MRI to detect histologically confirmed hepatic steatosis are 76.7 to 90.0% and 87.1 to 91%, respectively [7, 23]. Frequency-selective MRI, chemical-shift-encoded MRI, MR spectroscopy, and magnetic resonance elastography techniques are usually used to assess hepatic fat content . In MRI, both in-phase (IP) and out-of-phase (OOP) imaging to be adequately assessed to detect fatty liver (FL), and in out-of-phase image FL appears as hyper intense (in T1 image), mildly hyper intense (in T2 image), and signal droop out (signal loss is demonstrated when there is 10–15% fat fraction with maximum signal loss occurring when there is 50% fatty infiltration of the liver). Advantages of MRI-based detection of fatty liver are no radiation exposure; high diagnostic accuracy; can detect fat as low as 5–10%; operator independent; highly responsive to changes in steatosis throughout parenchyma; and not significantly impacted by demographics, histologic activity, or co-existing hepatic conditions. It has the following disadvantages: high cost and taking long time.
Hydrogen-1 MR spectroscopy (1H-MRS) is a non-invasive technique which can diagnose and quantify hepatic steatosis into three grades, and H-MHS thresholds correspond with histopathologic grading of steatosis and may obviate liver biopsy (Table 2) . 1H-MRS allows the direct measurement of the area under the lipid resonance peak. This test result is not modified by the presence of confounding factors such as fibrosis, iron overload, and glycogen. Main drawbacks of H-MHS are high cost, less availability, complex technique requiring patient co-operation, samples only a small portion of the entire liver, and not well validated and still considered a research tool.
Proton density fat fraction (PDFF) in MRI is also used for quantifying hepatic steatosis. PDFF is an accurate marker of hepatic steatosis and allows discriminating with a good diagnostic accuracy between different grades of hepatic steatosis . The accuracy of PDFF measurement using chemical shift-encoded methods is similar to that of MRS.
Recently, hepatic phosphorus-31 MRS (31P-MRS) is proposed in different studies as a potential marker to detect distinct biochemical changes in different NAFLD states. It shows promise in the differentiation of NAFLD stages .
Xenon–133 liver scan: Xe-133 liver scan is a safe, reliable, non-invasive method with low radiation exposure to detect and quantify hepatic steatosis, and is superior to ultrasound with a sensitivity of 94.3% and specificity of 87.5% . Compared with other imaging investigations, Xe-133 scan is more accurate to detect mild grade of steatosis . One major limitation of Xe-133 scan is that it only detects fat; therefore, it is not expected to distinguish between different subtypes of NAFLD and does not provide information of liver morphology. The usefulness of Xe-133 scan in the diagnosis of NAFLD has not been well studied till now (Fig. 1).
Non-invasive scoring systems for diagnosis of hepatic steatosis
There is no single laboratory marker that can be used for the diagnosis of NAFLD. Gamma-glutamyltransferase (GGT) in the serum is frequently elevated in NAFLD patients and associated with increased mortality , however does not help in diagnosis of NAFLD. Alanine aminotransferase (ALT) and aspartate aminotransferase (AST) levels are not sensitive for diagnosis of NAFLD. Following scoring systems are available to identify NAFLD.
NAFLD liver fat score (NLFS): The NAFLD liver fat score is estimated by using the presence of the metabolic syndrome, type 2 diabetes, fasting serum insulin level, fasting serum AST, and the AST/ALT ratio . NLFS value > − 0.640 has a sensitivity of 86% and specificity of 71% to identify hepatic steatosis > 5.56% . However, by this scoring system, different stages of NAFLD cannot be distinguished. This score provide simple and non-invasive tool to predict NAFLD and liver fat content. Higher NLFS is associated with increased liver disease mortality but not with other mortality outcomes .
Fatty liver index (FLI): Fatty liver index is a suitable and simple predictor for hepatic steatosis. FLI is calculated by measuring waist circumference, body mass index, serum triglyceride, and gamma-glutamyltransferase . Score varies from zero to 100. Fatty liver index < 30 rules out fatty liver, but value ≥ 60 rules in fatty liver with a sensitivity and specificity of 86% and 87%, respectively . FLI independently associates with overall, cardiovascular and cancer-related mortality. FLI can serve as a surrogate marker for hepatic steatosis and metabolic syndrome in type 1 diabetes .
Hepatic steatosis index (HSI): It is a simple, effective NAFLD screening tool derived by a logistic regression model. It includes gender, history of T2DM, body mass index (BMI), alanine transaminase (ALT), and aspartate transaminase (AST). HSI is calculated by the following formula: 8 × (ALT/AST ratio) + BMI (addition of +2 if female; +2 if diabetes mellitus) . HSI value < 30 excludes NAFLD with 93.1% sensitivity and value > 36 detects NAFLD with a specificity of 92.4% . It may be utilized for selecting individuals for hepatic USG and for determining the need of lifestyle modifications.
Lipid accumulation product (LAP): It is significantly associated with the presence of liver steatosis and has a high diagnostic accuracy to identify NAFLD in the general population, and diagnostic accuracy is higher in young age group individuals [34, 35]. Following calculation is used to measure LAP: [waist circumference (cm) − 65] × triglyceride concentration (mmol//L) in men and [waist circumference (cm) − 58] × triglyceride concentration (mmol/L) in women . Cutoff values of LAP in men and women are 30.5 (sensitivity 77%, specificity 75%) and 23.0 (sensitivity 82%, specificity 79%), respectively . Although this is a very simple and low cost test, it needs further validation before recommendation. Lipid accumulation product can also predict metabolic syndrome in individuals without fatty liver disease .
SteatoTest: SteatoTest includes ten components such as serum α2-macroglobulin, apo A1, haptoglobin, total bilirubin, GGT, ALT, body mass index, serum cholesterol, triglycerides, and glucose adjusted for age and gender. It is a simple and non-invasive method to identify liver steatosis and may reduce the need for liver biopsy, particularly in patients with component of metabolic syndrome . A cutoff of 0.30 has 90% sensitivity, and a cutoff of 0.72 has 90% specificity to diagnose hepatic steatosis . It needs further validation before recommendation.
NAFL screening score: It is a model to detect NAFLD with the following six components: age, fasting blood glucose, BMI, triglyceride, ALT/AST, and uric acid. The lower cutoff value with a sensitivity of 92% and negative predictive value of 95% is 0.24, and the high cutoff value with 90% specificity and 84% positive predictive value is 0.44 .
Non-invasive tests for diagnosis of non-alcoholic steatohepatitis (NASH)
NASH can progress to cirrhosis and its complications such as portal hypertension, liver failure, and hepatocellular carcinoma. Cirrhosis develops in 21 to 28% of NASH patients compared to only 3% of patients with non-alcoholic fatty liver. The gold standard for diagnosis of NASH is liver biopsy. But liver biopsy is an invasive procedure and has several complications, non-invasive tests has been developed for diagnosis of NASH (Fig. 2).
Serum cytokeratin (CK)-18: It is a marker of hepatocyte apoptosis, most widely investigated for diagnosis of NASH and is the most consistent single parameter for differentiating steatosis from NASH . Cutoff value of CK-18 > 240 U/L has a sensitivity of 76.7% and specificity of 95.0% for diagnosis of NASH . Another study showed that optimal cutoff point of serum CK-18-fragments for definite NASH was 270 U/L with sensitivity and specificity of 64% and 76%, respectively .
Serum aminotransferases: It is commonly used in clinical practice as a surrogate marker for liver inflammation but has poor predictive value for diagnosis of NASH . Serum alanine aminotransferase (ALT) value > 2 times the upper limit of normal (> 70 U/L) has a sensitivity of 50% and specificity of 61% for NASH detection , but ~ 80% of patients with fatty liver have shown ALT levels within normal limits . Aminotransferase levels do not correlate with the degree of hepatic fibrosis. Liver enzymes should not be used for detection of NASH. Further studies are required to find out cutoff value of liver enzymes to prevent unnecessary diagnostic work-ups and early detection of NASH.
Serum adiponectin: Adiponectin is exclusively synthesized by adipose tissue and involves in glucose and lipid metabolism. It is a negative predictor of NASH in fatty liver patients with a cutoff value 29.16 μg/L .
Fibroblast growth factor 21 (FGF21): Serum FGF21 level correlates with severity of steatohepatitis in patients with NASH, and its level may help to identify patients who are having highest risk of disease progression. Plasma FGF21 was higher in patients with NASH with mean value of 453 ± 262 pg/mL when compared to patients without NASH . To improve the positive predictive value (PPV) and negative predictive value (NPV) of FGF21, CK-18 is combined with FGF21, which improves the PPV to 82% and NPV to 74% .
Proprotein convertase subtilisin/kexin type 9 (PCSK9): Hepatocytes secrete PCSK9 which inhibits the uptake of low-density lipoproteins by targeting the receptor for degradation and possibly lipogenesis. In a recent study, Paquette et al. described strong association between PCSK9 and liver biomarkers as well as hepatic steatosis . Circulating PCSK9 increases with hepatic fat accumulation and also correlates with the severity of steatosis .
Plasma pentraxin 3(PTX3): Higher serum concentration of pentraxin 3 protein is seen in patients with more advanced stages of NAFLD, and higher values are correlated with advanced stages of the hepatic fibrosis. Therefore, serum PTX3 level could be used as a marker to assess severity of hepatic fibrosis .
Malondialdehyde (MDA): High serum level of malondialdehyde is seen in type 2 diabetes patients with NASH than without NASH . MDA can stimulate hepatic stellate cells and result in fibrosis.
Tumor necrosis factor alpha (TNF-α): Tilg et al. described that TNF-α is elevated in serum of those with NASH . Patients with high level of TNF-α have increased burden of NAFLD and higher adverse hepatic event risk compared to patients with low level of TNF-α .
Interleukin-6 (IL-6): Elevated serum IL-6 is associated with an increased likelihood of exhibiting NAFLD. IL-6 is positively correlated with severity of hepatocyte inflammation, stage of fibrosis in patients with NASH . However, Yoneda et al. in their study did not find any increase in expression of IL-6 in patients with steatohepatitis as compared to patients with simple hepatic steatosis .
Non-invasive scoring systems for diagnosis of steatohepatitis (NASH)
NASH test: NASH test is a simple and non-invasive scoring system to predict the presence or absence of NASH in patients with non-alcoholic fatty liver disease . It includes 13 components (age, sex, height, weight, serum levels of triglycerides, cholesterol, a2-macroglobulin, apolipoprotein A1, haptoglobin, g-glutamyltransferase, aminotransferases ALT, AST, and total bilirubin) to identify NASH and divide NASH into three categories: NASH (AUROC of 0.79), Borderline NASH (AUROC of 0.69), and No-NASH (AUROC of 0.77–0.83) .
HAIR score: This score depends on the following parameters: hypertension, alanine aminotransferase [ALT] level, and insulin resistance. The presence of at least two of the three parameters provides the best combination of sensitivity of 80% and specificity of 89% for predicting NASH especially in severely obese individuals .
NASH diagnostic index (NDI): This index is calculated by serum insulin, glucose, triglycerides, ALT, and waist-to-hip ratio. By using a value ≥ 22, NDI has a specificity of 82% for establishing a diagnosis of simple steatosis, and NDI has a specificity of 86% for diagnosing NASH when value is ≥ 50 .
NICE model: A simple and non-invasive composite model includes metabolic syndrome (MS), CK-18, and serum ALT level. This model is designed to diagnose NASH in morbidly obese patients. The equation of “Nice model” is: − 5.654 + 3.780E−02 × ALT (IU/L) + 2.215E−03 × CK18 fragment levels (IU/L) + 1.825 × (presence of MS = 1) . The best cutoff value is 0.14 for diagnosis of NASH and this value is associated with 84% sensitivity, 86% specificity, 44% positive predictive value, and 98% negative predictive value.
Palekar score: It was proposed to distinguish NASH from steatosis. This scoring system includes the following risk factors: age ≥ 50 years, female gender, AST ≥ 45 IU/L, body mass index (BMI) ≥ 30 mg/kg2, AST/ALT ratio ≥ 0.80, and hyaluronic acid ≥ 55 μg/L. The presence of three or more risk factors has 73.7% sensitivity and 65.7% specificity to distinguish NASH from steatosis .
NAFIC score: This score is used by using ferritin, fasting insulin, and type IV collagen 7S for predicting non-alcoholic steatohepatitis in NAFLD patients .
NASH ClinLipMet score: This test is used by utilizing serum AST value, fasting insulin value, PNPLA3 genotype, glutamate, isoleucine, glycine, lysophosphatidylcholine 16:0, and phosphoethanolamine 40:6. The sensitivity of this scoring system is 75% . This test is usually used in research because of high cost.
NASH predictive index (NPI): This index is used by using age, female gender, body mass index (BMI), homeostatic model assessment (HOMA) of insulin resistance, and log [aspartate aminotransferase (AST) × ALT]. For predicting the presence of NASH, this index is promising (AUROC of 0.87 to 0.90) but lacks external validation .
Other scoring systems: Gholam score (AST and diabetes mellitus)  and oxNASH (13-hydroxyl-octadecadienoic acid/linoleic acid ratio, age, BMI, and AST) score > 72 were 10 times more likely to have NASH compared to those with oxNASH score < 47 , and a clinical score by Chunming et al.  including ALT, gamma-glutamyl transpeptidase, C-reactive protein, and ApoB/ApoA1 ratio, NASH Score  (AST, PNPLA3 genotype and fasting insulin) were studied for identification of NASH.
Breath test for diagnosis of non-alcoholic steatohepatitis
A study showed that analyzing three volatile organic compounds (n-tridecane, 3-methyl-butanonitrile, and 1-propanol) in the exhaled breath were sufficient to distinguish patients with NASH from without NASH with negative and positive predictive values of 82% and 81%, respectively .
Imagings for diagnosis of non-alcoholic steatohepatitis
Routine imaging techniques (Ultrasonography, CT, or MRI) are unable to differentiate NASH from simple steatosis.
Proton magnetic resonance (1H-MRS): This method is studied in detecting NASH with a sensitivity of 87.4% and specificity of 74.3% .
Magnetic resonance elastography (MRE): MRE can accurately identify NASH prior to fibrosis and differentiate NASH from NAFL with a sensitivity of 94% and specificity 73% by using a threshold of 2.74 kPa . But it needs further validation.

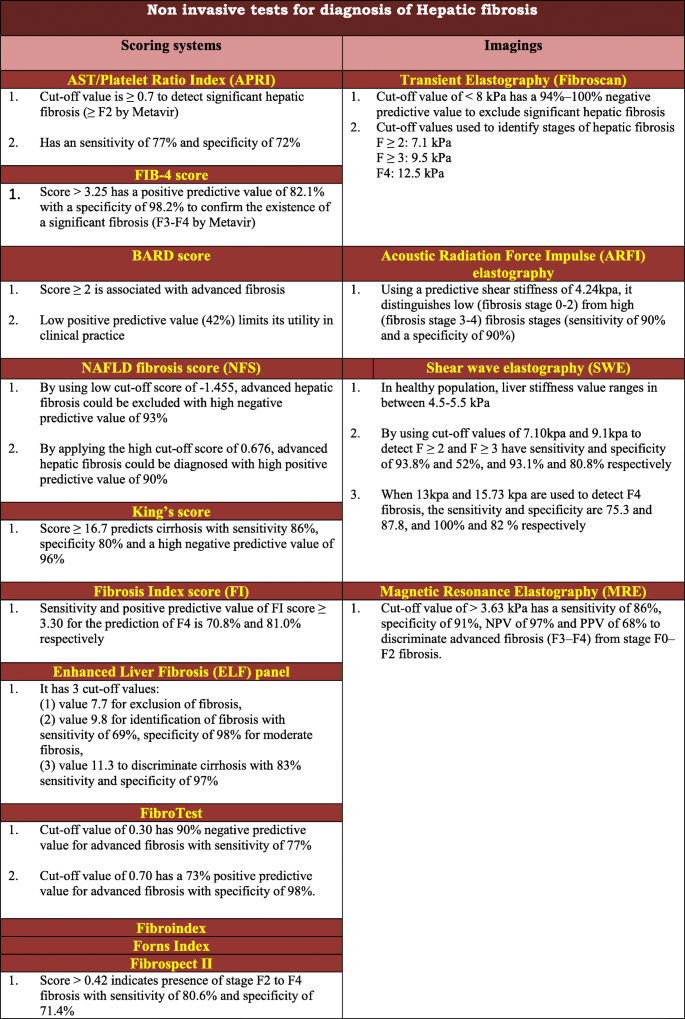

Non-invasive tests for diagnosis of hepatic fibrosis:
Stages of liver fibrosis are the most important factor for the prognosis of NAFLD and predicting the risk of progression to cirrhosis and its complications. There are several predictive models available to identify hepatic fibrosis (Fig. 3).
Non-invasive scoring systems for diagnosis of hepatic fibrosis
AST/platelet ratio index (APRI): This is measured by using the patient’s AST level, upper limit of normal AST value, and platelet count. APRI cutoff of ≥ 0.7 has a sensitivity of 77% and specificity of 72% to detect significant hepatic fibrosis (≥ F2 by Metavir) and a cutoff score of at least 1.0 has a sensitivity of 61 to 76% and specificity of 64 to 72% for detection of severe fibrosis/cirrhosis (F3 to F4 by Metavir) . APRI has a good negative predictive value to exclude advanced fibrosis but does not accurately differentiate intermediate fibrosis from mild or severe fibrosis.
FIB-4: It is a simple, accurate, and inexpensive method for assessing liver fibrosis and includes the following components: age, platelet count, AST, and ALT. It is calculated by using [age (years) × AST (U/L)]/[number of platelets (109/L) × ALT (U/L) (1/2)] formula. An FIB-4 score > 3.25 has a positive predictive value of 82.1% with a specificity of 98.2% to confirm the existence of a significant fibrosis (F3-F4 by Metavir) . FIB-4 has high negative predictive value (> 90%) for ruling out advanced fibrosis when score is < 1.45.
BARD score: This is calculated by using the sum of 3 variables (BMI ≥ 28 = 1 point, AST-to-ALT Ratio ≥ 0.8 = 2 points, the presence of diabetes = 1 point), and score ≥ 2 is associated with advanced fibrosis . Due to its simplicity, it is popular among general practitioners, However due to its low positive predictive value (< 42%) it includes many patients without NASH/ fibrosis into high risk group and limits its utility in clinical practice.
NAFLD fibrosis score (NFS): A simple scoring system accurately separates NAFLD with and without advanced fibrosis. It includes age, hyperglycemia, body mass index, platelet count, albumin, and AST/ALT ratio as variables. By using low cutoff score of − 1.455, advanced hepatic fibrosis could be excluded with high negative predictive value of 93%, and by applying the high cutoff score of 0.676, advanced hepatic fibrosis could be diagnosed with high positive predictive value of 90% . Advantages of the NFS are as follows: (1) its ability to provide prognostic information and (2) identify NAFLD patients who are at increased risk for liver-related complications such as ascites and gastroesophageal varices or death.
King’s score: The King’s score is a simple index for predicting cirrhosis and calculated by the following formula: age × AST (U/L) × INR/platelet count (109/L). Score of ≥ 16.7 predicts cirrhosis with sensitivity 86%, specificity 80%, and a high negative predictive value of 96% . This score was initially evaluated for diagnosis of cirrhosis in patients with hepatitis C infection.
Fibrosis index score (FI): This is a simple index to detect hepatic fibrosis noninvasively and measured by “8 − 0.01 × number of platelets (109/L) − albumin (g/dL)” formula. Sensitivity and positive predictive value of FI score ≥ 3.30 for the prediction of F4 is 70.8% and 81.0%, respectively .
Cao et al. published a score by measuring CK-18, ALT, platelets, and triglycerides that had significant positive correlation with staging hepatic fibrosis .
Egy-Score: This score is a useful non-invasive panel of surrogate biomarkers that can accurately predict stages of hepatic fibrosis. Egy-Score was calculated by the following formula: 3.52 + 0.0063 × CA19-9 + 0.0203 × age + 0.4485 × alpha-2-macroglobulin + 0.0303 × bilirubin − 0.0048 × platelet − 0.0462 × albumin .
Enhanced liver fibrosis (ELF) panel: It includes three variables: hyaluronic acid, tissue inhibitor of metalloproteinase 1, and aminoterminal peptide of procollagen III. It has 3 cutoff values: (1) value 7.7 for exclusion of fibrosis, (2) value 9.8 for identification of fibrosis with sensitivity of 69% and specificity of 98% for moderate fibrosis, and (3) value 11.3 to discriminate cirrhosis with 83% sensitivity and specificity of 97% .
FibroTest: This is calculated by using five biomarkers: haptoglobin, α2-macroglobulin, apolipoprotein A1, total bilirubin, and GGT. Cutoff value of 0.30 has 90% negative predictive value for advanced fibrosis with sensitivity of 77%, and a cutoff value of 0.70 has a 73% positive predictive value for advanced fibrosis with specificity of 98%. False positive result is seen in Gilbert’s syndrome, cholestasis, acute hemolysis, renal insufficiency, on medications that may cause unconjugated hyperbilirubinemia, and acute liver inflammation .
Fibroindex: This simple scoring system is measured by using the following three biochemical markers: AST, platelet count, and gamma globulin. It has good specificity for mild or significant fibrosis (94% and 97% respectively) but has low sensitivity (40% and 36% respectively) . Due to its low sensitivity, it is not an adequate tool to be used alone for detection of hepatic fibrosis.
HepaScore: Age, sex, total bilirubin, GGT, alpha-2-macroglobulin, and hyaluronic acid levels are used to calculate HepaScore. Score ≤ 0.2 has 98% negative predictive value to exclude fibrosis and ≥ 0.8 has a positive predictive value of 62% to predict cirrhosis .
Forns index: It has the following components: age, gamma-glutamyltransferase (GGT), cholesterol, and platelet count. Score < 4.25 has a negative predictive value of 96% to exclude significant fibrosis and value > 6.9 has positive predictive value of 66% for diagnosis of significant fibrosis .
Fibrospect II: This test (including hyaluronic acid, tissue inhibitor of a metalloproteinase-1 (TIMP-1), and alpha-2-macroglobulin as variables) can be used to predict stages of hepatic fibrosis (F2 to F4). Score > 0.42 indicates presence of stage F2 to F4 fibrosis with sensitivity of 80.6% and specificity of 71.4% .
Imagings for diagnosis of hepatic fibrosis
Transient elastography (Fibroscan): This is an easy-to-perform, non-invasive, day care procedure which takes about 5 to 10 min and measures the velocity of 50 MHz shear wave that is emitted by ultrasound transducer probe and transmitted through hepatic tissue. This velocity of share wave in the liver is positively related to liver stiffness, and value ranges from 1.5 to 75 kPa. Fibroscan examines a larger area of liver tissue (1 cm diameter × 5 cm in length) than liver biopsy and provides a more representative assessment of the entire hepatic parenchyma. Two types of probe are available to measure hepatic stiffness: “M” probe is the most commonly used to measure shear wave velocity, and “XL” probe is usually used in obese people to reduce the failure rate. Cutoff value of < 8 kPa has a 94–100% negative predictive value to exclude significant hepatic fibrosis , and cutoff values used to identify stages of hepatic fibrosis are as follow: 7.1 kPa for F ≥ 2, 9.5 kPa for F ≥ 3, and 12.5 kPa for F4 . Conditions which increase liver stiffness without fibrosis are acute hepatitis, hepatic congestion (e.g., in heart failure), mass lesions within the liver, and cholestasis. Failure or unreliable to take readings are seen more frequently in the following patients: obesity (BMI > 30–35 kg/m2), older age, and presence of ascites. There are no absolute contraindications for this test, however manufacturer also advises against the use of this device in pregnancy and in patients with a pacemaker and implantable defibrillators. Despite these limitations, Fibroscan is one of the more reliable non-invasive methods to estimate liver fibrosis and is recommended during the management of NAFLD in the current guidelines .
Acoustic radiation force impulse (ARFI) elastography: ARFI uses a conventional B-mode ultrasonography probe which produces an acoustic pulse. Hepatic stiffness is expressed as shear wave velocity in meter per second (m/s) after calculating the median for 10 successful measures. Using a predictive shear stiffness of 4.24 kPa, it distinguishes low (fibrosis stage 0–2) from high (fibrosis stage 3–4) fibrosis stages with a sensitivity of 90% and a specificity of 90% . The advantages of ARFI are as follows: (1) the acoustic energy pulse is not affected by obesity or ascitic fluid, (2) specific regions of interest can be focused during procedure to measure varying depths in specific areas of the liver, (3) at the same time whole liver can be evaluated by ultrasonography which is not possible with Fbroscan. However, the presence of severe steatosis can affect accuracy of ARFI .
Shear wave elastography (SWE): By using conventional ultrasonography machine, SWE estimates liver stiffness in the right lobe and positively correlated with liver fibrosis severity and can potentially differentiate intermediate degrees of liver fibrosis in patients with NAFLD. Shear waves produced by a conventional ultrasound beam are directly related to the hepatic stiffness and are reported to be more accurate than transient elastography in assessing significant fibrosis of the liver (LS) (≥ F2) . Hepatic stiffness is measured in the right lobe of the liver, and measurement of LS in the left lobe is inappropriate because it is affected by cardiac pulsation. In healthy population, liver stiffness value ranges in between 4.5 and 5.5 kPa . Food intake increases LS value and results in falsely high fibrosis stages, and usually 180 min after food intake, value comes to the normal range; therefore, it is recommended to measure hepatic stiffness at least 4 h after food intake . By using cut-off values of 7.10 kPa and 9.1 kPa to detect, F ≥ 2 and F ≥ 3 have sensitivity and specificity of 93.8% and 52%, and 93.1% and 80.8% respectively. When 13 kPa and 15.73 kPa are used to detect F4 fibrosis, the sensitivity and specificity are 75.3 and 87.8, and 100% and 82 % respectively [90, 91].
Magnetic resonance elastography (MRE): It can assess a larger surface area of the liver or the entire liver than US-based modalities and is not limited by ascites and obesity. MRE has a sensitivity of 94% and specificity of 95% to differentiate F0 to F1 from F2 to F4, and 98% sensitivity and 94% specificity in differentiating F0 to F3 from F4 . A cutoff value of > 3.63 kPa has a sensitivity of 86%, specificity of 91%, NPV of 97%, and PPV of 68% to discriminate advanced fibrosis (F3–F4) from stage F0 to F2 fibrosis . Limitations of MRE are as follows: (1) it cannot be applied to individuals with hepatic iron overload due to the interfering signal intensity, (2) high cost of MRE, (3) needs further validations.
Emerging genetic biomarkers for diagnosis of different stages of NAFLD
Several genetic biomarkers were studied to diagnose or identify different stages of NAFLD. However, it needs further research before recommendations on emerging genetic biomarkers.
Lipidomic serum tests: These tests distinguish NAFLD from normal liver (NL) and NASH from non-alcoholic fatty liver (NAFL) with high accuracy. The diagnostic performances of the validated tests for discrimination between NAFLD and NL show sensitivity and specificity of 0.94 and 0.57, respectively and sensitivity of 0.70 and specificity of 0.81, respectively for the discrimination between NASH and NAFL
Proteomic analysis: This analysis can be used to differentiate simple steatosis from NASH with significant fibrosis (F3/F4 group), and the NASH with significant fibrosis (F3/F4 group) and without significant fibrosis . Complement component C7 was three-fold higher in the NASH group with significant/advanced fibrosis (F2–F4) compared with the early NASH (F0–F1). Complement component C7 and Fibulin-1 are positively correlated with liver stiffness, whereas complement component C8 γ chain is negatively correlated. High levels of complement C7 are associated with NASH with significant/advanced fibrosis .
Gut microbiome-based metagenomic signature: Gut microbiome compositions using whole-genome shotgun sequencing of DNA extracted from stool can be used to identify advanced hepatic fibrosis in NAFLD patients. The gut microbiomes in NAFLD are dominated by members of Bacteroidetes and Firmicutes followed by Actinobacteria and Proteobacteria in much lower amount. Proteobacteria phylum has a statistically significant increase in amount (while the Firmicutes phylum decrease) as the disease progresses from mild/moderate NAFLD to advanced fibrosis .
Management of NAFLD (Fig. 4)
NALFD patients without NASH and hepatic fibrosis are treated by lifestyle changes which include diet modification and moderate physical exercise along with treatment of underlying causes. Pharmacotherapy is available in presence of NASH and fibrosis (≥ 2). NAFLD patients with an advanced liver fibrosis (ELF test > 10.51) a indication for pharmacotherapy in the NICE guideline . Patients with NASH should be the main target of treatment due to higher risk of mortality related to the disease. A weight loss of at least 7% is required for histological improvement in obese NASH patients.
Lifestyle modification: It is an effective therapy to downgrade hepatic injury in NAFLD patients .
Diet modification: Energy restriction with a low calorie, low fat, and low carbohydrate or high-protein Mediterranean diet is advised in NAFLD patients. 500–1000 kcal deficit diet per day to induce a weight loss of 500–1000 g/week is usually recommended (according to EASL, Asia-Pacific and AASLD guidelines). According to the Italian Association for the Study of the Liver (IASL), amount of fat and carbohydrate should be < 30% and < 50% of total calories respectively.
Coffee drinking is protective in NAFLD by reducing histological severity and liver-related outcomes and inversely related to the steatohepatitis severity . Therefore daily coffee consumption should be encouraged in NAFLD patients. Coffee intake ≥ 2 cups/day improves NAFLD and reduces liver-related morbidities . Caffeine inhibits proliferation of hepatic stellate cell, thus exerting an anti-fibrogenic effect via adenosine receptor blockade .
Fructose-containing beverages and foods should be avoided because it appears as one major factor for initiation of hepatic steatosis and also its progression to NASH and more severe stages of the liver fibrosis [103, 104].
Alcohol intake should be < 30 g/day for men and < 20 g/day for women but better to avoid alcohol consumption of any type or amount in individuals with NAFLD .
Omega-3 fatty acid supplementation reduces hepatic steatosis and improves serum gamma-glutamyltransferase, triglyceride, and high-density lipoprotein in patients with NAFLD; therefore, omega-3 fatty acid supplementation may be a new treatment option for NAFLD [106, 107]. But according to AASLD guideline (2018), omega-3 fatty acid should not be used as a specific treatment of NAFLD or NASH, but it can be used to treat hypertriglyceridemia in NAFLD patients .
Physical exercise: Both moderate and vigorous aerobic exercise (e.g., brisk walking, stationery cycling) and resistance training (150–200 min/week in 3–5 sessions) is effective to reduce hepatic steatosis by reducing weight , and choice of exercise should be based on patients’ preference . In general, 5 to 10% reduction in body weight in obese or overweight people over 6 to 12 months has been advocated through diet modification and physical exercise.
At least 3–5% of body weight loss is necessary to improve hepatic steatosis, but > 7% weight loss is required for histological improvement in NASH and fibrosis .
Therefore, the first line intervention in the management of NAFLD is lifestyle modification which includes (1) at least 7–10% weight loss by a combination of low-calorie diet with discourage of high fructose and saturated fat in foods. Diet with omega-3 fatty acid supplement may be advised, and (2) moderate to vigorous physical activity.
Pharmacotherapy: Only few drugs are recommended in the treatment of biopsy-proven NASH and fibrosis stage ≥ 2 or Fibroscan value > 10.51.
Pioglitazone: It is a peroxisome proliferator-activated receptor (PPAR) gamma agonist which improves histological features in biopsy-proven NASH patients with and without type 2 diabetes mellitus. Fifteen to thirty milligrams daily dose of Pioglitazone is recommended in the above indication. The optimal duration of therapy is unknown, but according to EASL guideline , treatment should be stopped if there is no reduction in aminotransferases after 6 months of therapy, and in patients with normal ALT at baseline, no recommendations can be made. Bone loss in women and weight gain are common side effect associated with use of Pioglitazone. Bladder cancer has been a concern during use of Pioglitazone, but another study found that there is no statistically significant association between use of Pioglitazone and risk of bladder cancer .
Vitamin E: It is superior to placebo for the treatment of NASH in adults without diabetes, and compared with placebo, vitamin E use is associated with significantly higher rate of improvement in non-alcoholic steatohepatitis (43% vs. 19%). It reduces hepatic steatosis and lobular inflammation, but no improvement in hepatic fibrosis scores . According to AASLD and NICE guidelines, vitamin E may be considered at a dose of 800 IU/day in nondiabetic adults with biopsy-proven NASH . But according to Asia-Pacific guideline, vitamin E therapy is not beneficial for NASH management .
Saroglitazar: Saroglitazar (dual PPAR α/γ agonist) at a dose of 4 mg improves ALT value and fatty liver (evaluated by transient elastography) in patients with NALFD and diabetic dyslipidemia . Saroglitazar can be a potential therapeutic option for the management of metabolic syndrome associated NAFLD and NASH . Another study from India with 12 months follow-up showed that Saroglitazar is safe and effective in management of NAFLD patients and is a potential option in the future . But it needs further exploration before recommendation.
Liraglutide: It is a glucagon-like peptide-1 (GLP-1) analog which is safe, well tolerated, and associated with histological improvement of non-alcoholic steatohepatitis with 1.8 mg subcutaneous injections daily . Most common side effects are diarrhea, constipation, and loss of appetite. However, it needs large studies for further evaluation for recommendation for the treatment of NAFLD.
Ursodeoxycholic acid (UDCA): Histological activities of NASH are not improved by using UDCA (13–15 mg/kg/day) alone, but improvements are seen when combination of vitamin E and UDCA is given . High-dose UDCA (23–28 mg/kg/day) also fails to improve the overall histology in patients with NASH . According to NICE, EASL, Asia-pacific, and AASLD guidelines, UDCA is not recommended for treatment of NAFLD, NASH, or hepatic fibrosis however few recent articles showed positive results [118, 119]. Parikh et al. in their study indicated that UDCA is an effective and safe alternative to vitamin E in nondiabetic–non-cirrhotic Indian NAFLD patients . Another systemic review recommended UDCA as a frontline therapeutic option for NASH, thereby preventing its progression to cirrhosis and liver cancer .
Obeticholic acid: This synthetic farnesoid X receptor agonist at a dose of 25 mg daily is associated with histological improvement of NASH [120, 121]. Obeticholic acid might become the first approved pharmacotherapy for NASH fibrosis after result of recent multicentre, randomized, placebo-controlled phase 3 trial done by Younossi et al. . For long-term safety and tolerability, it requires further studies, as obeticholic acid can increase low density lipoprotein level and pruritus is also extremely common with high dose of obeticholic acid.
Statin and n-3 polyunsaturated fatty acids: There are no data to support their use specifically for NASH.
SGLT-2 inhibitors: These drugs improve the serum liver enzymes value and reduce hepatic steatosis and fibrosis in type 2 diabetes patients with NAFLD . Therefore use of SGLT2-inhibitors in type 2 diabetes patients with NAFLD is promising. Further researches are required to progress in this evolving field.
Others emerging drugs for management of NAFLD:
Elafibranor: It is a peroxisome proliferator-activated receptor-α and peroxisome proliferator-activated receptor-δ agonist and improves insulin sensitivity, glucose homeostasis, and lipid metabolism, and reduces inflammation. Ratziu et al. in their study showed that elafibranor (120 mg/day for 1 year) resolved NASH without fibrosis worsening . It has an effect on the resolution on NASH and improvises two key drivers of NASH progression—insulin resistance and serum lipid normalization . It induces nuclear factor-κB results in inhibition of inflammatory genes and decreases the expression of acute-phase response genes . It causes reversible elevation of serum creatinine level; therefore, its use is potentially limiting in patients with concurrent renal disease. Common side effects are congestive heart failure, peripheral edema, bone fractures, and weight gain.
Lanifibranor (IVA337): It is a pan-peroxisome proliferator-activated receptor (PPAR) agonist with moderate and well-balanced activity on the three PPAR isoforms (α, γ, δ). It inhibits proliferation and activation of hepatic stellate cells which are the key cells driving liver fibrogenesis in NASH. It improves liver histology by decreasing liver steatosis, inflammation, and ballooning. Wettstein et al. in their study indicated that lanifibranor has therapeutic potential in the treatment of NASH .
Solithromycin: Solithromycin is a highly potent macrolide antibiotic. A clinical trial is going on (NCT02510599) which showed that there is reduction of NAFLD activity score and ALT level after 90 days treatment with Solithromycin in patients with NASH by targeting intestinal microbiomes and metabolic endotoxemia.
Cenicrivoric: Cenicriviroc is a CCR (C—C chemokine receptor) 2 and CCR5 dual antagonist which is playing an important role in macrophage recruitment and polarization in NASH pathogenesis. One phase 2 trial (2018) showed that there was improvement in fibrosis and no worsening of steatohepatitis compared with placebo . Therefore, the drug is now in phase 3.
Selonsertib: It is an apoptosis signal-regulating kinase 1 (ASK1, involved in response to various stresses) inhibitor. Loomba et al. in their phase 2 trial described that selonsertib may reduce liver fibrosis in patients with non-alcoholic steatohepatitis and stage 2–3 fibrosis . Now this drug is in phase 3 trial.
Emricasan: It is an oral pan-caspase inhibitor. Lipotoxicity leading to excessive caspase-mediated apoptosis and inflammation is responsible of liver damage in NAFLD. Shiffman et al. in their study showed that emricasan (25 mg twice daily) decreases ALT and biomarkers in NAFLD patients after 28 days of treatment .
Management of underlying diseases: Along with above treatment, underlying causes of NAFLD should be treated adequately like management of each component of metabolic syndrome if present.
Though liver biopsy is the gold standard test to detect NAFLD and to identify different stages of hepatic steatosis and fibrosis, multiple non-invasive tests are also available nowadays. Few of them are FDA approved and others’ diagnostic tests need further evaluation before recommendation in clinical practice. The NAFLD fibrosis score, transient elastography are recommended to assess hepatic fibrosis and disease activity  however for diagnosis of NASH, liver biopsy is required due to lack of availability of serum cytokeratine 19 fragments test in clinical practice. Further studies are required to find out cutoff values and role of non-invasive markers and tests for NAFLD before giving approval. Liver biopsy should be considered in the following conditions: (1) when a competing etiology of chronic liver disease cannot be excluded just by non-invasive methods, (2) suspect of NAFLD-related advanced liver disease. Treatment of NAFLD can be divided into lifestyle modification (including diet restriction, low calorie diet intake, physical exercise leading to weight loss), pharmacotherapy (restricted to NAFLD patients with NASH and fibrosis), and management of underlying causes of NAFLD. Early diagnosis and proper management are required to avoid longterm complications of NAFLD.
